CR Series Configurations
Combine alloy-hammer heavy-slag removal with abrasive belt grinding and edge rounding for demanding cut parts.
C
Dedicated removal of heavy laser, plasma, or flame-cut slag.
CR
Heavy slag removal followed by abrasive belt grinding.
CRS
Slag removal, abrasive belt grinding, and edge rounding.
CRSR CURRENT MODEL
Slag removal, grinding, edge rounding, and final surface refinement.
A - Vacuum Conveyor
For non-magnetic, small, or thin workpieces.
M - Magnetic Conveyor
For stable holding of ferrous steel parts.
A-M - Dual Conveyor Platform
Combines vacuum and magnetic holding for mixed materials and frequently changing production requirements.
Station key: C = alloy-hammer heavy-slag removal | R = abrasive belt grinding | S = abrasive filament brush edge rounding. Station quantity, order, width, conveyor, and automation can be customized.
Product Summary and Selection Guide
The QMZN-800CRSR-M is a metal deburring and surface finishing machine for laser-cut, plasma-cut, and sheet metal parts that require slag removal, burr removal, edge rounding, and surface preparation in one automated process.
This model is suitable for manufacturers that process mixed metal parts and need a more consistent alternative to manual grinding. Its disc brush and abrasive belt configuration helps improve edge quality, reduce sharp burrs, and prepare parts for coating, welding, assembly, or downstream finishing.
Best for
- Laser-cut sheet metal parts
- Plasma-cut parts with burrs or slag
- Parts that require edge rounding before coating
- Fabricators that need repeatable finishing quality
Key capabilities
- Slag and burr removal
- Edge rounding and chamfering
- Abrasive belt grinding
- Disc brush surface finishing
- Automated conveying for stable batch processing
800CRSR-M Heavy-Slag Removal and Finishing Machine
The Qintellim 800CRSR-M combines an alloy-hammer slag-removal station, abrasive-belt grinding, edge rounding, and final surface refinement for demanding thermally cut sheet-metal parts.
Best For
Plasma-cut and flame-cut steel parts
Large slag and heavy burr removal
Parts requiring edge rounding after slag removal
Multi-stage processing in one automated pass
Process Flow
1. C station
Alloy hammers remove large slag and heavy surface deposits.

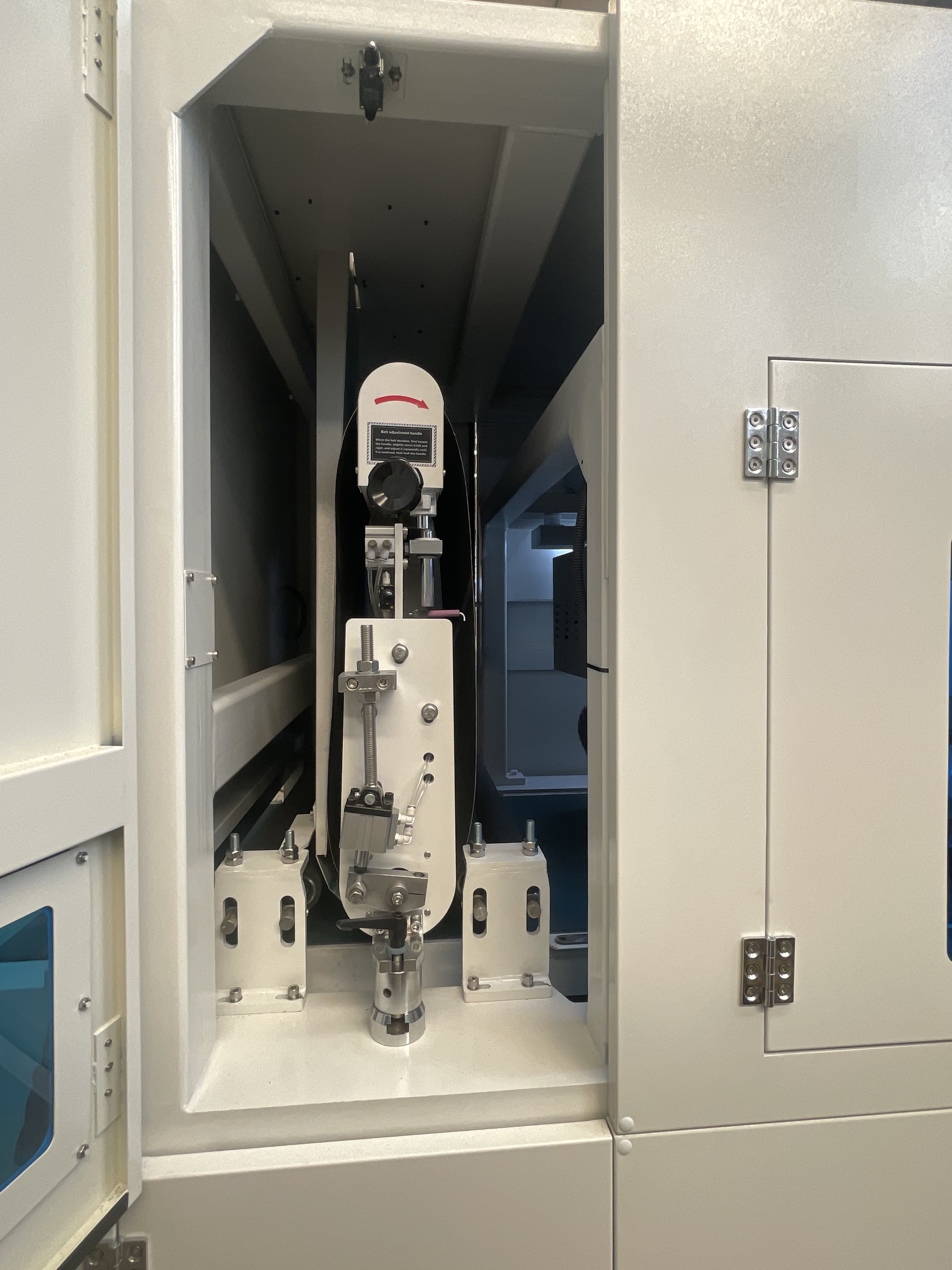

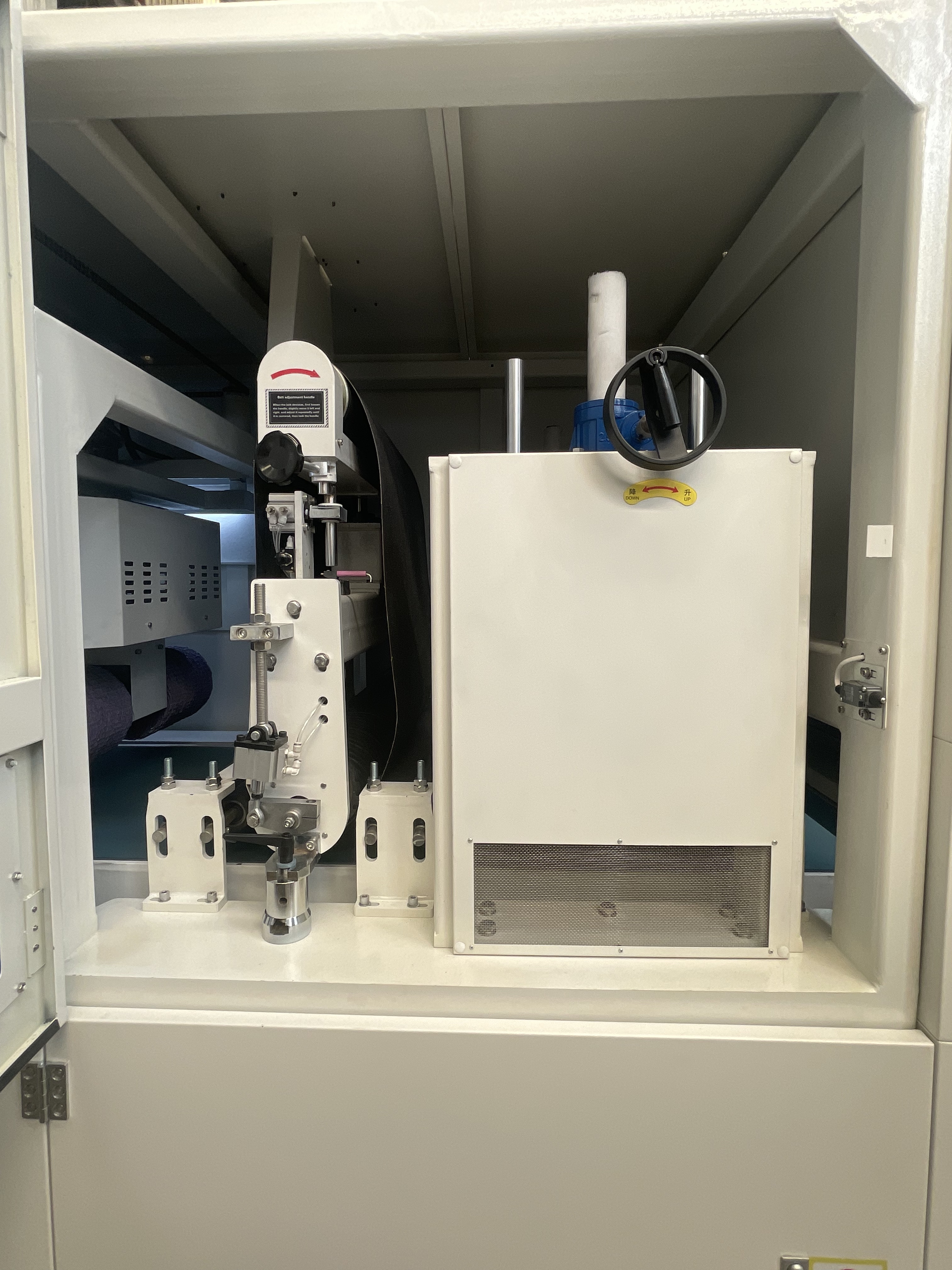

2. First R station
Abrasive-belt grinding removes remaining burrs and levels the surface.
3. S station
Abrasive-filament brushes create controlled rounded edges.
4. Final R station
Final grinding refines the processed surface.

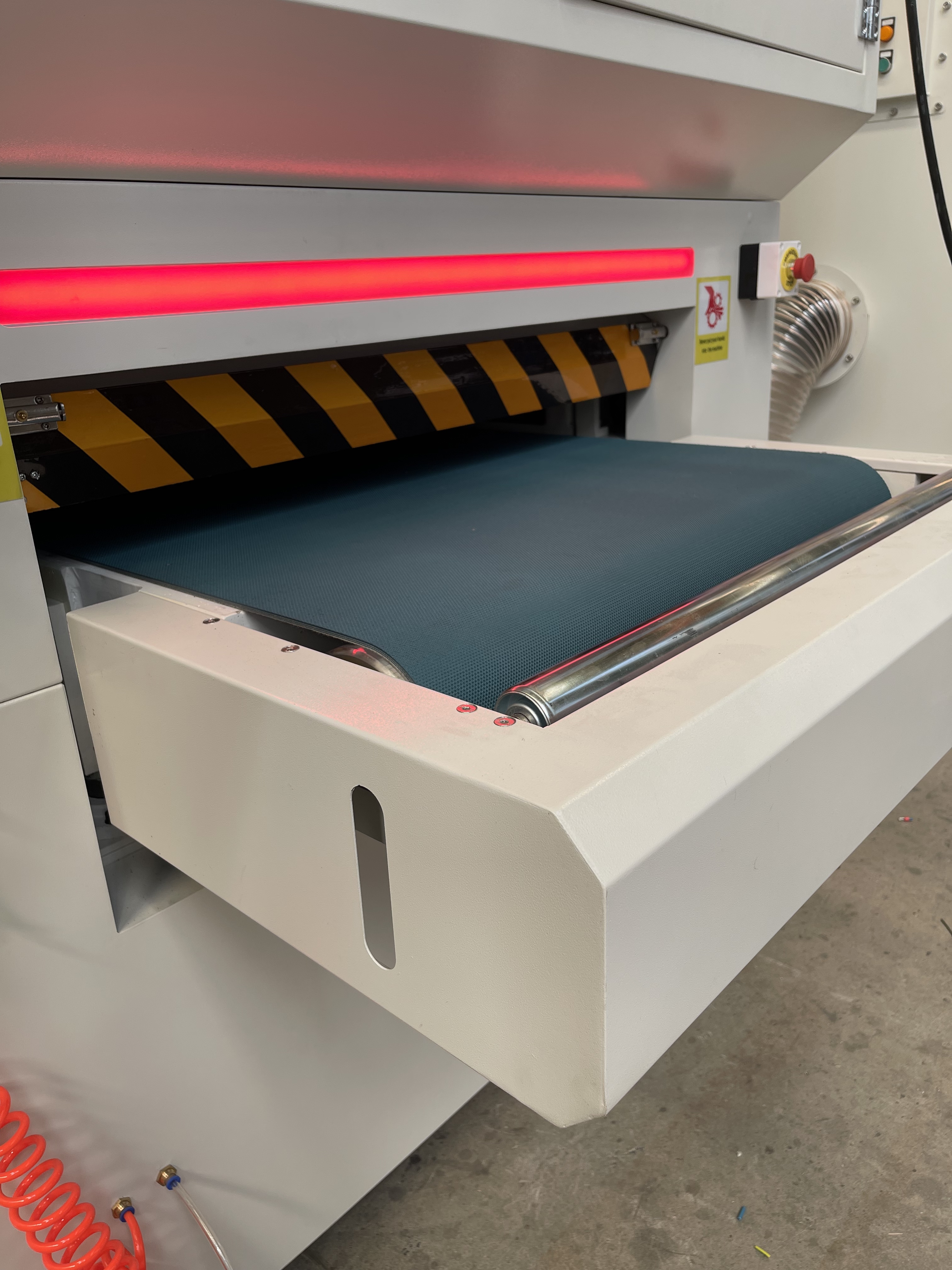

5. M conveyor
Magnetic holding stabilizes suitable ferrous workpieces.
Key Capabilities
| Capability | Production Value |
|---|
| Alloy-hammer C station | Removes large slag before the finer finishing stages. |
| Integrated R-S-R process | Combines grinding, edge rounding, and surface refinement in one pass. |
| Magnetic conveyor platform | Provides stable transport for suitable ferrous components. |
| Independent station control | Allows the process route to match different slag and burr conditions. |
Configuration Summary
| Model | QMZN-800CRSR-M |
| Nominal working width | 800 mm; custom widths available |
| Process configuration | C-R-S-R heavy-slag removal and finishing configuration |
| Conveyor platform | M magnetic conveyor platform |
Final specifications are confirmed according to the workpiece, process target, dust-collection method, conveyor platform, and automation requirements.
Available Working Widths
Qintellim machines can be configured with different conveyor-platform and processing widths to match the workpiece size, production capacity, and process requirements.
450 mm
630 mm
800 mm
1000 mm
1300 mm
1600 mm
The final working width and conveyor-platform configuration are confirmed according to representative workpieces and the required production process.
Available Options
- Alternative CR and CRS-series station quantities and sequences
- Different alloy-hammer, abrasive-belt, and brush-wheel specifications
- A vacuum, M magnetic, or A-M dual conveyor platform
- Custom working width and conveyor dimensions
- Automatic loading, unloading, and line integration
Select the Right Configuration
Send Qintellim your material, part dimensions, cutting process, burr or slag condition, target edge radius, required finish, and throughput. Representative sample testing is recommended before the final machine configuration is confirmed.
