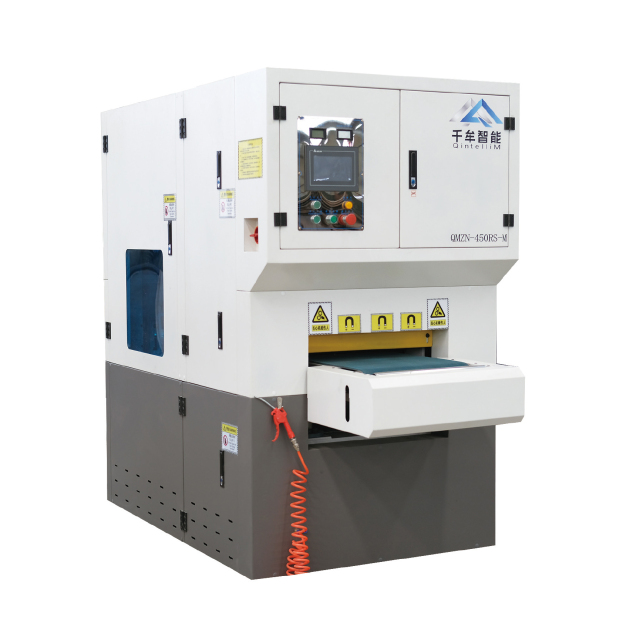

Compact Belt Grinding & Chamfering Machine

No.450RS-M
The QMZN-450RS-M is a compact yet fully functional intelligent integrated machine for deburring and chamfering. It cleverly integrates a single abrasive belt grinding station and a dual-set four-brush wheel chamfering station, specifically designed for carbon steel and other metal workpieces. It can efficiently complete composite processing including surface deburring, oxide scale removal, and precision edge rounding. Equipped with a full magnetic adsorption conveyor platform, the machine ensures secure workpiece fixation; combined with the Delta PLC touchscreen control system, it achieves high precision and stable operation within a compact body, making it an ideal high-efficiency solution for processing small and medium-sized workpieces.

• High consistency in rounding inner and outer contours
GET A QUOTE
Add to Quote List View Quote List
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim
  • 450RS-M Compact Belt Grinding & Chamfering Machine | Qintellim

Description

Product Summary and Selection Guide

The 450RS-M is a compact belt grinding and chamfering machine for small and medium sheet metal parts that require burr removal, edge cleaning, and preparation before coating or assembly.

This model is suitable for workshops with limited floor space or production lines that need a smaller deburring station for mixed part sizes. Its compact layout helps improve edge consistency while reducing manual grinding work.

Best for
- Small sheet metal parts
- Laser-cut or punched parts with light to medium burrs
- Workshops with limited floor space
- Manufacturers that need compact edge preparation equipment

Key capabilities
- Belt grinding
- Burr removal and chamfering
- Edge cleaning before coating or assembly
- Compact automated finishing

QMZN-450RS-M Intelligent Compact Deburring Machine | Abrasive Belt Grinding + Brush Wheel Chamfering Integrated Solution

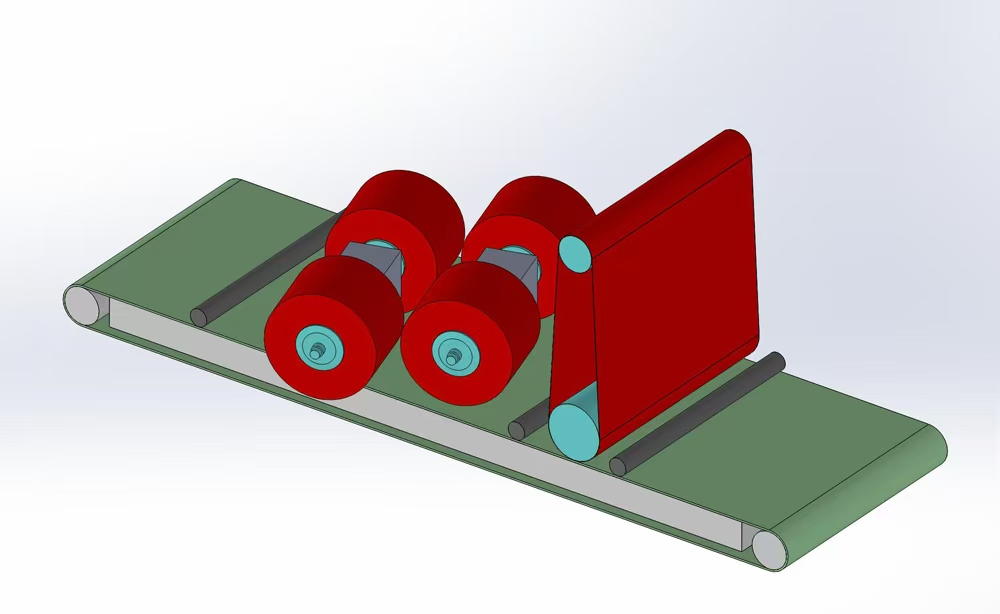

🔧 Core Structure Diagram

Clearly understand the compact and efficient dual-station layout of the QMZN-450RS-M through the diagram below:

Diagram Guide:

  • Compact Magnetic Adsorption Conveyor Platform: Adopts full magnetic adsorption design to ensure no displacement of small and medium-sized workpieces during processing, with high safety. The platform is optimally designed for minimal floor space occupation.
  • （Station 1）Abrasive Belt Grinding Station: A single wide abrasive belt rotates at high speed, effectively removing burrs, oxide scale, and impurities from the workpiece surface, laying the foundation for subsequent chamfering.
  • （Station 2）Dual-Set Four-Brush Wheel Chamfering Station: Equipped with two sets of brush wheels (two units per set, four brush wheel units in total), specially optimized for efficient and uniform edge rounding of workpieces, improving product feel and safety.
  • Intelligent Control Center: Centralized control via Delta PLC touchscreen control system, featuring a user-friendly interface for precise setting and monitoring of all process parameters.
  • Manual Air-Jet Cleaning Interface: Dedicated air gun interfaces are equipped at both ends of the equipment, facilitating operators to quickly clean and maintain the machine in optimal working condition.
  • Robust Integrated Body: Adopts a high-strength automated welding frame, followed by quenching and precision processing, ensuring the machine's rigidity, stability, and long service life within a compact space.

✨ Core Advantages Explained

Advantage Module
Technical Features & Customer Value
Compact Integrated Design
Integrates grinding and chamfering functions in one compact structure with small floor space, providing an efficient and complete solution for workshops with limited space.
Safe & Precise Magnetic Platform
The full magnetic adsorption conveyor platform provides strong and uniform adsorption force for workpieces, especially suitable for small, medium-sized and thin-plate workpieces, ensuring zero sliding during processing and achieving both safety and precision.
Efficient Edge Processing
Dual-set four-brush wheel configuration, optimized for edge chamfering, features high processing efficiency and delivers uniform rounding effect, significantly improving workpiece quality.
Intelligent & Flexible Control
Delta PLC + touchscreen control enables precise and intuitive parameter setting, supporting process recipe storage and recall, which is particularly suitable for flexible production needs of multi-variety and small-batch workpieces.
Excellent Cost-Effectiveness
Achieves efficient composite processing with entry-level power (approx. 11.5kW), the unit area processing cost is much lower than manual work, delivering high return on investment.
Robust & Reliable Structure
The core frame adopts high-strength welding and quenching processes, with key parts undergoing precision processing, ensuring precision and stability during long-term use.

📋 Principal Technical Specifications

Item
Specification Details
Model
QMZN-450RS-M (PLC Touchscreen Control)
Control System
Delta PLC
Max. Processing Width
450 mm（Custom widths available from 450 mm to 1600 mm）
Processing Thickness Range
0.8 – 80 mm
Min. Processing Size
20 mm × 20 mm
Feed Speed
1 – 5 m/min (VFD Adjustable)
Brush Disk Revolution Speed
10 – 30 rpm (VFD Adjustable)
Brush Disk Rotation Speed
300 – 1000 rpm (VFD Adjustable)
Abrasive Belt Station
1 Station
Brush Wheel Configuration
2 Sets (4 Brush Wheel Units Total)
Abrasive Belt Specification
460 mm × 1710 mm
Brush Wheel Specification
Φ250 mm × 200 mm × 25 mm
Approximate Total Installed Power
11.5 kW
Machine Overall Dimensions
2400 (L) × 1100 (W) × 2000 (H) mm
Approximate Machine Weight
1550 kg
Standard Color
Grey + White (Customizable)

🛠️ Application Scenarios

  • Small & Medium-Sized Sheet Metal Processing: One-stop deburring and chamfering for parts such as cabinets, brackets, and small/medium-sized panels.
  • Hardware Component Manufacturing: Batch post-processing surface treatment for various carbon steel stamping parts and standard parts.
  • Mold & Mechanical Parts: Edge trimming and surface cleaning for small mold parts and mechanical components.
  • Laboratories & R&D Centers: Meets the needs of small-batch, multi-variety sample trial production and research, featuring small floor space and flexible operation.

📦 Installation & Service Support

  • Installation Requirements: Level and solid foundation, 380V/60Hz (±10%) power supply, 0.5-1 MPa compressed air source.
  • Delivery Documentation: Includes wear parts list, product certificate of conformity, Chinese operation & maintenance manual, circuit diagrams, PLC program diagrams, installation layout drawings, and instructional videos.
  • Professional Services: Free on-site installation guidance, equipment commissioning, and operator training.

🚀 Request Your Custom Solution

With its compact design, complete functions, and excellent cost-effectiveness, the QMZN-450RS-M provides a reliable, efficient entry-level and upgrade option for your small and medium-sized workpiece processing.
Contact us today to:
  • Obtain detailed technical data and a targeted quotation.
  • Arrange free test processing for your small workpieces.
  • Visit to observe the actual operation status of the equipment.
—— QintelliM: Providing Comprehensive Surface Finishing Solutions from Standard to Customized ——

Product Configuration Guide

Confirm the Right Surface Finishing System Configuration

Qintellim deburring machines, surface finishing equipment and dust collection systems can be configured according to your material, cutting process, dust risk, burr condition and required surface finish.

Get Machine Recommendation Send Inquiry

Core Applications

Suitable for laser-cut, plasma-cut, punched and stamped sheet metal parts requiring stable deburring, edge rounding, oxide removal, dust collection or surface finishing.

Laser CuttingSheet MetalCoating Prep

Custom Widths

Working width can be customized at 450 / 630 / 800 / 1000 / 1300 / 1600 mm for small parts, standard sheets and wide-format production.

450-1600 mmA / M / A-MOEM / ODM

Station & System Logic

R belt grinding, S edge rounding, C heavy-slag removal, W brushing or polishing, and wet or dry dust collection can be combined according to production needs.

RSCWDust
Can this system be customized?

Yes. Qintellim can customize working width, station sequence, conveyor platform and dust collection according to sample parts and production targets.

What information is needed for quotation?

Please share material, thickness, workpiece size, cutting process, burr condition, dust risk, required finish, capacity and sample photos if available.

Can it support oxide, slag or dust control?

Yes. Oxide removal, heavy-slag removal and dust collection depend on the selected configuration and working environment.

Do you support sample testing?

Sample testing is recommended before final machine configuration, especially for new materials, coating requirements or mixed-part production.
