Product Summary and Selection Guide

The 1000RRR-M is a triple-belt high-efficiency grinding machine for high-volume metal processing where heavy burr removal, slag removal, and consistent surface preparation are required.

This model is suitable for production lines that need stronger grinding throughput than single- or dual-belt configurations. Its three abrasive belt stations support efficient material removal and more stable finishing results for demanding sheet metal applications.

Best for
- High-volume sheet metal production
- Parts with heavy burrs or slag
- Laser-cut and plasma-cut metal parts
- Manufacturers that need stronger grinding capacity

Key capabilities
- Triple abrasive belt grinding
- Heavy burr and slag removal
- Surface preparation before coating or assembly
- High-efficiency batch processing

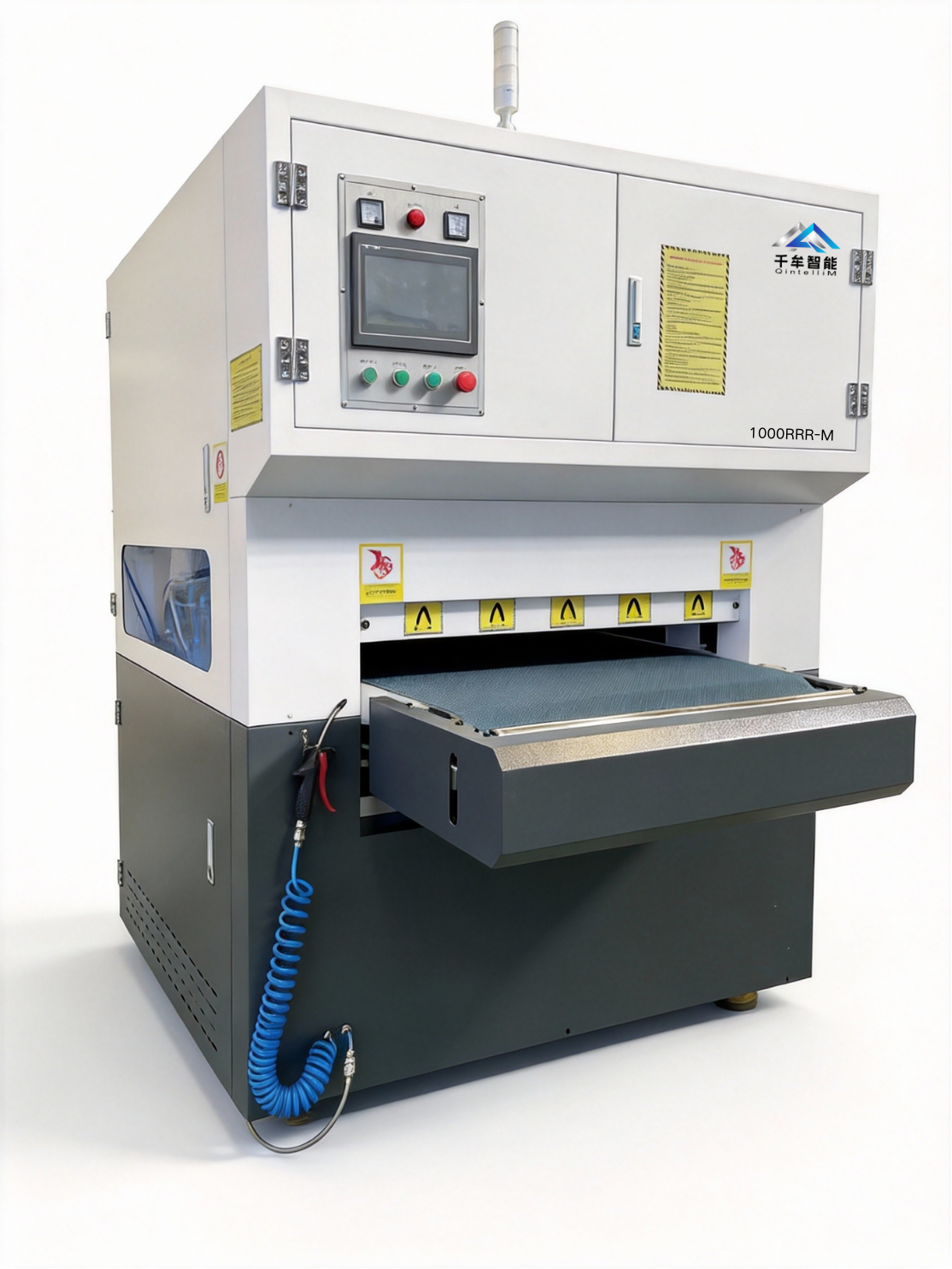

QMZN-1000RRR-M Intelligent Deburring Machine | Triple-Belt High-Efficiency Precision Grinding Solution

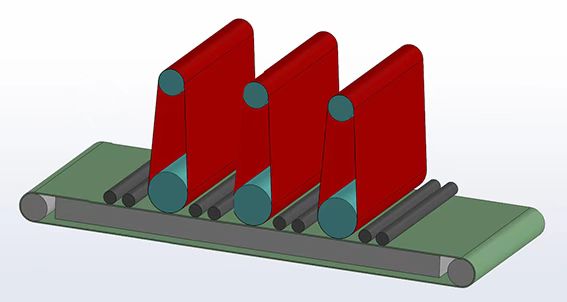

🔧 Core Structure Diagram

Diagram Guide:

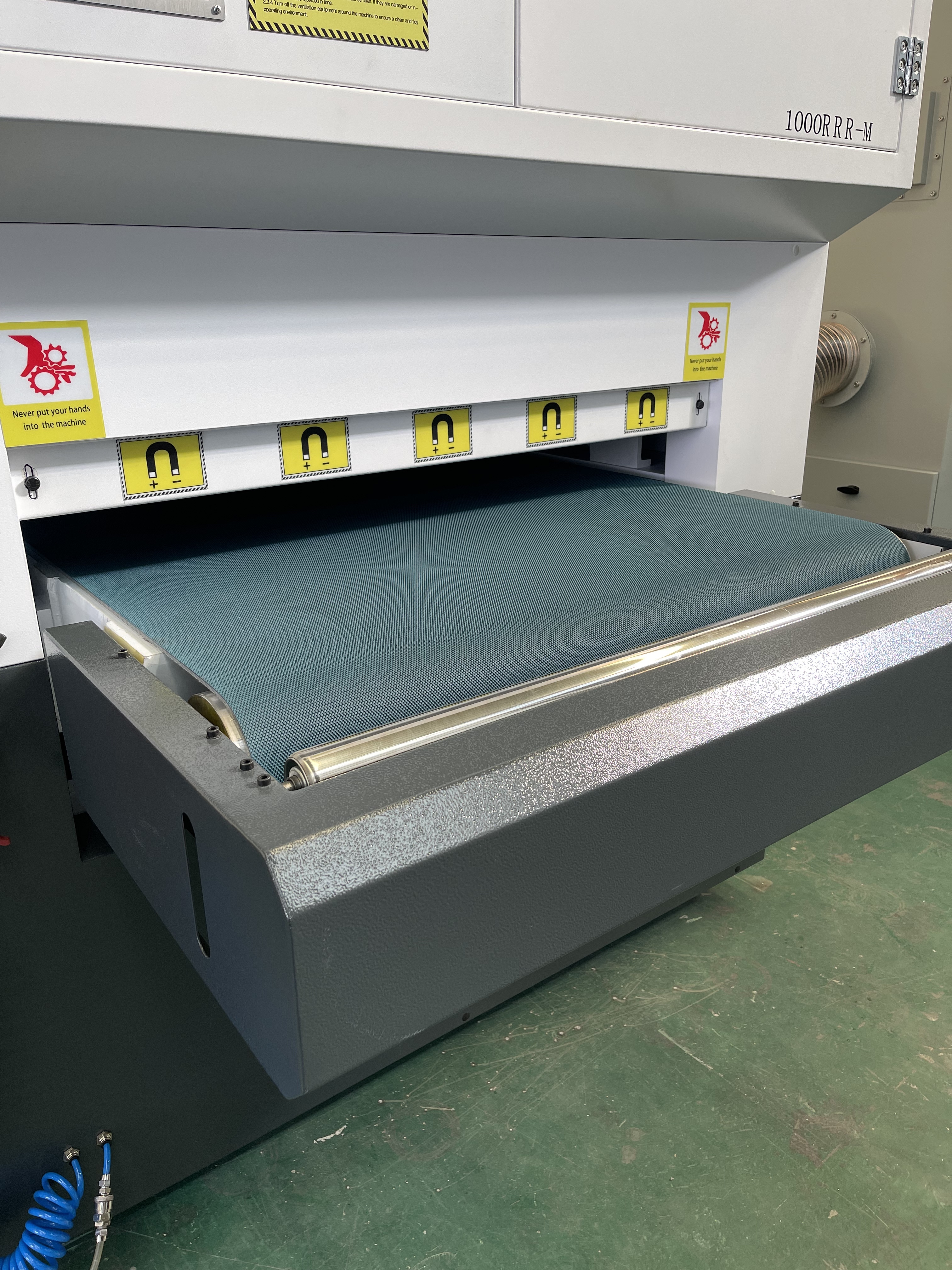

• Extended Magnetic Conveyor Platform: The infeed and outfeed sections are extended by approximately 20% compared to standard designs, supporting continuous material feeding, facilitating batch loading/unloading, and improving production efficiency.

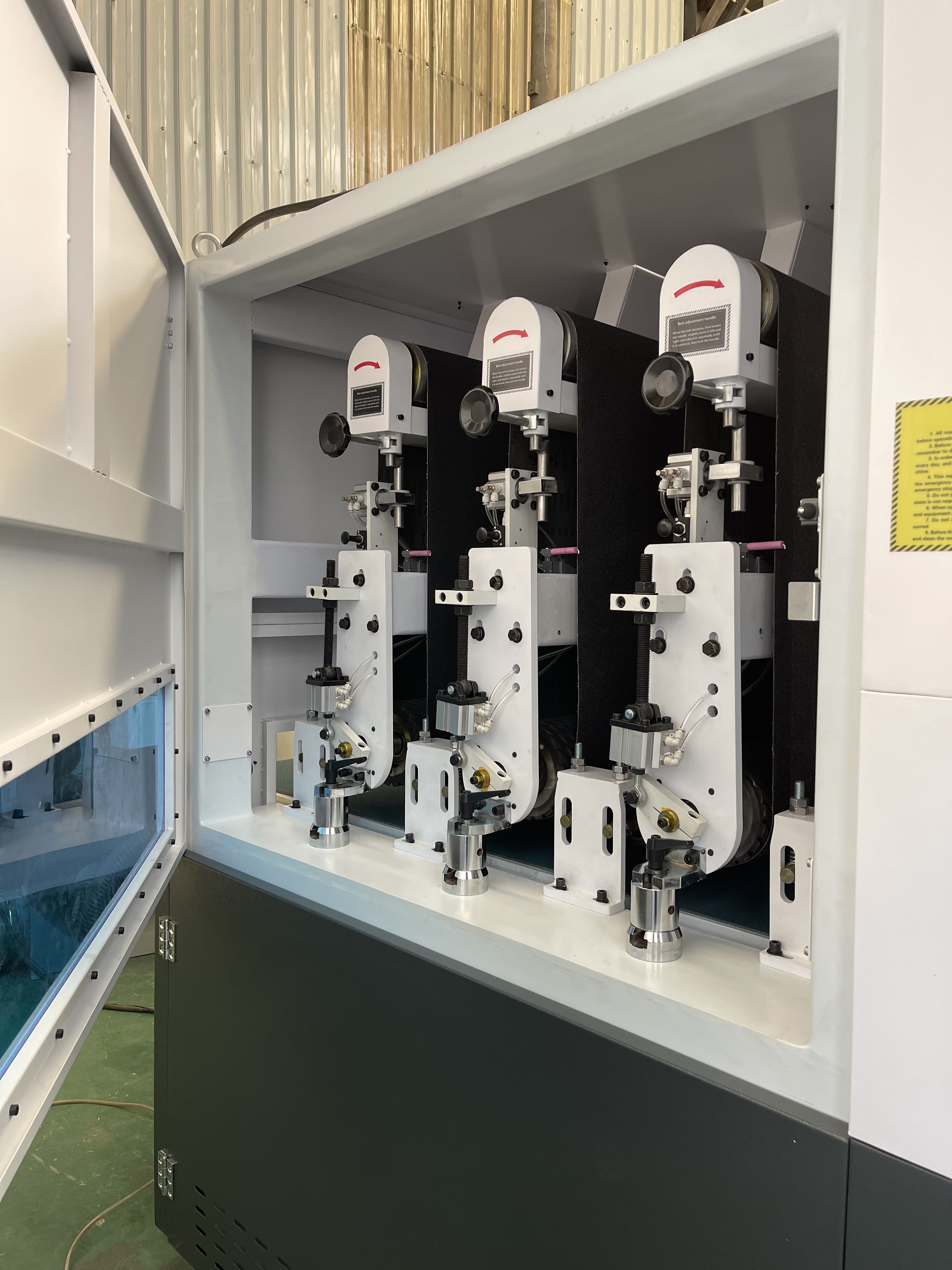

• （Stations 1-3）Triple-Belt Precision Grinding Stations: Three independent abrasive belt stations can operate sequentially or individually, enabling flexible process combinations from coarse to fine grinding to meet diverse surface finish requirements.
• Intelligent Photoelectric Belt Alignment System (FDCR): Automatically detects and real-time corrects abrasive belt misalignment, ensuring precise and stable grinding trajectories, reducing workpiece waste and downtime.

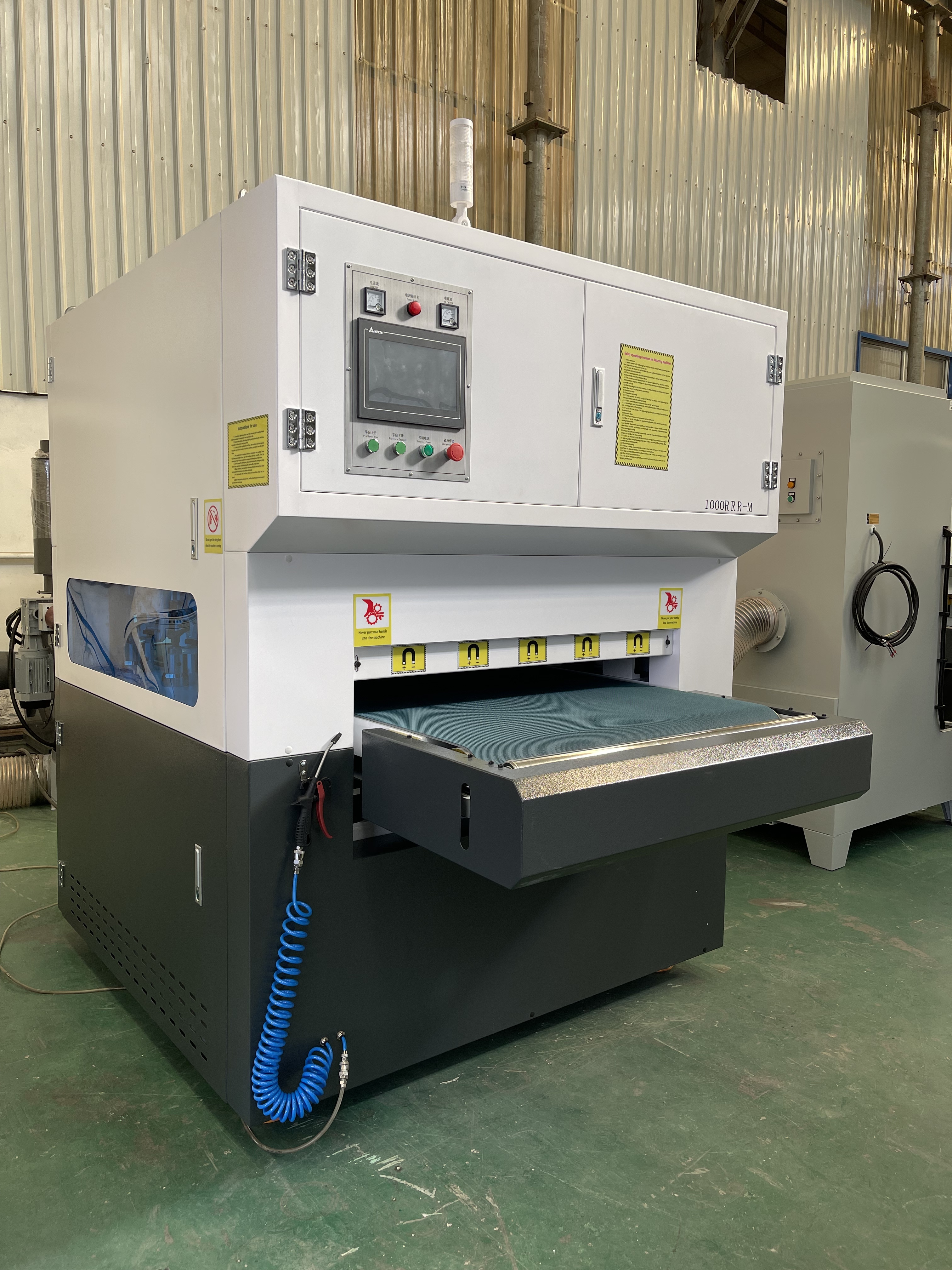

• Integrated Touchscreen Control Center: Delta PLC control system integrates all operation and monitoring functions, featuring an intuitive interface and accurate parameter setting.
• Automatic Air-Jet Cleaning Unit: Equipped with dedicated air nozzles to automatically remove grinding chips and dust from the conveyor belt during processing intervals, maintaining equipment cleanliness and extending the service life of core components.
• High-Efficiency Dust Extraction Interface: Optional wet dust collection system is available to effectively collect grinding dust, ensuring a clean working environment and operator health.
• Discharge Area: Workpieces completed with multi-stage grinding are output smoothly, featuring uniform and consistent surface quality.

✨ Core Advantages Explained

📋 Principal Technical Specifications

🛠️ Application Scenarios

• Sheet Metal Precision Finishing: High-efficiency deburring and surface brushing/polishing for various cabinets, enclosures, and panels after stamping or laser cutting.
• Stainless Steel Product Processing: Removes weld oxide scale from stainless steel workpieces and performs surface precision grinding, preparing for subsequent mirror polishing.
• Metal Component Surface Treatment: Batch and consistent surface cleaning and beautification for structural parts and profiles after welding or cutting.
• Automated Production Line Integration: Easy integration into intelligent manufacturing cells thanks to stable PLC control and customizable width.

📦 Installation & Service Support

• Installation Requirements: Level and solid foundation, 380V/60Hz (±10%) power supply, 0.5-1 MPa compressed air source.
• Delivery Documentation: Includes wear parts list, product certificate of conformity, English and Chinese operation & maintenance manuals, circuit diagrams, PLC program diagrams, installation layout drawings, and instructional videos.
• Professional Services: Free on-site installation guidance, equipment commissioning, and systematic operator training.

🚀 Request Your Custom Solution

• Detailed technical proposal and targeted quotation
• Free sample test grinding verification based on your workpieces
• Arrangement for on-site visit and equipment operation demonstration
